Wavespectrum Laser, Inc.

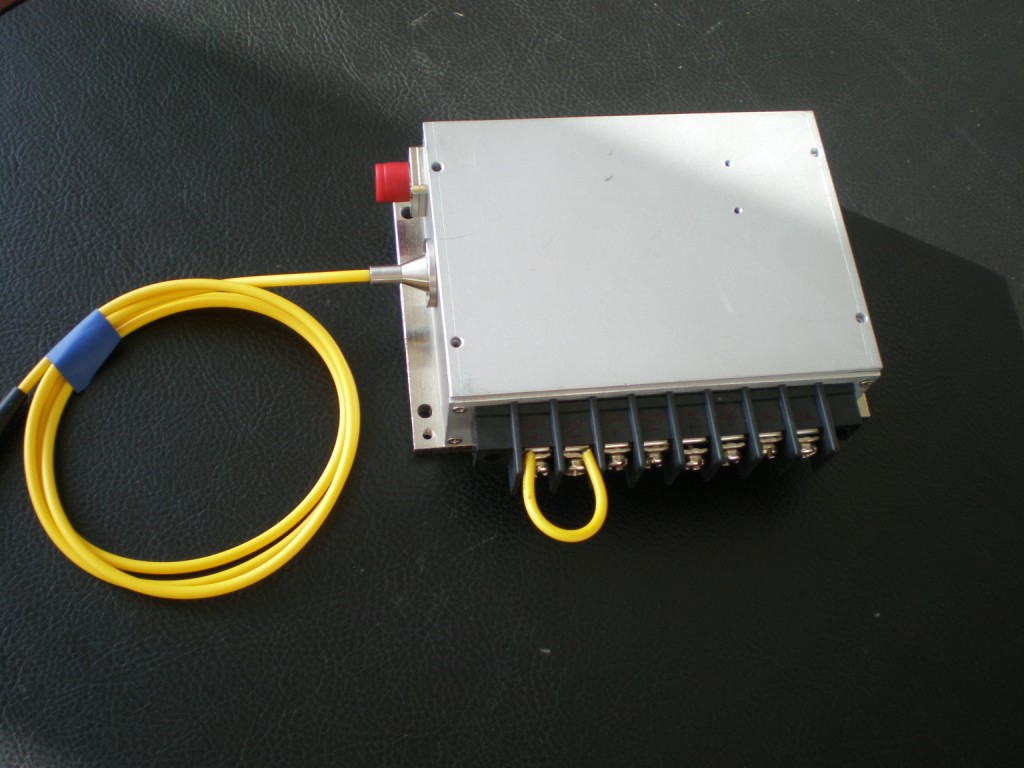

10w 940nm Fiber Coupled Laser Diode

WSLB-940-010-H

Parameter

Symbol

Value

Unit

Reverse Voltage

V_r

2.0

V

Operating Temperature

T_op

-10~+25

°C

Storage Temperature

T_stg

-40 ~ +85

°C

Leadsoldering temperature

T_is

260

°C

Features

Applications

         940nm laser diode

         10W output power

         P2 package

         TEC Cooling

         Medical laser treatment

         Pumping

Specifications

WSLB-940-010-H

Center Wavelength@25℃

940+/-10 nm

Spectral Width (FWHM)

3nm

Output Power

10W

Temperature Coefficient of Wavelength

0.28nm / °C

Slope Efficiency

1.0mW/mA

Threshold Current (Typ.)

0.35A

Operating Current (Typ.)

4.5A

Operating Voltage

7V

Thermistor Value(25°C)

(10+/-0.5)KΩ

TEC Current (Max)

----

TEC Voltage( Max)

----

Fiber Core

<300um

-----

Fiber N.A.

0.22

Fiber Length

100cm

Bend Radius(Min)

25mm

Connector Type

ST/FC/SMA905

Cooling

TEC Cooling

Aiming Beam

Optional

Package Style

P2
