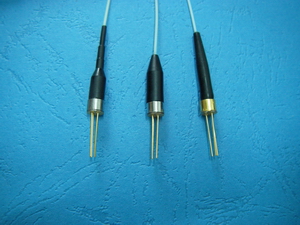

100um Coaxial package pigtailed Photodetector
100um Coaxial package pigtailed Photodetectors/Photodiodes
High Responsivity
Low dark current
Low terminal capacitance
Coaxial packages
Receptacle packages available
High Responsivity
Low dark current
Low terminal capacitance
Coaxial packages
Receptacle packages available
Detailed Specification
Coaxial Package Pigtailed InGaAs PIN Photodetectors
Wavespectrum Laser Inc.
Absolute Maximum Ratings
Parameter |
Symbol |
Value |
Unit |
|
Operating Temperature |
Top |
-40~+85 |
°C |
|
Storage Temperature |
Tstg |
-40 ~ +125 |
°C |
|
Reverse Voltage |
Vr |
15 |
V |
|
Forward Current |
If |
2.0 |
mA |
|
Lead Soldering Temperature(10 sec.) |
Tis |
260 |
°C |
Detailed specification
Specifications
|
Testing condition
|
WSPP-IGA-100-9
|
Unit |
|||
|
|
|
Min |
Type |
Max |
|
|
|
Sensitive Area |
---- |
|
100 |
|
μm |
|
|
Responsibility |
=1310nm |
0.8 |
0.85 |
---- |
A/W |
|
|
=1550nm |
0.85 |
0.90 |
---- |
|||
|
Response Spectrum |
----- |
1100 |
1310 |
1650 |
nm |
|
|
Dark Current (Typical) |
Vr=5V |
|
0.3 |
2.0 |
nA |
|
|
Capacitance |
Vr=5V |
---- |
0.7 |
1.0 |
PF |
|
|
Rise / Fall time |
Vr=5V |
---- |
---- |
0.30 |
ns |
|
|
Bandwidth |
3dB |
---- |
2.0 |
---- |
GHz |
|
|
Saturation power(Typical) |
Vr=5V |
---- |
2 |
---- |
mW |
|
|
Fiber Core |
|
|
9 |
|
um |
|
|
Fiber Length |
|
|
100 |
|
cm |
|
|
Fiber Connector |
|
FC/SC/ST |
||||
